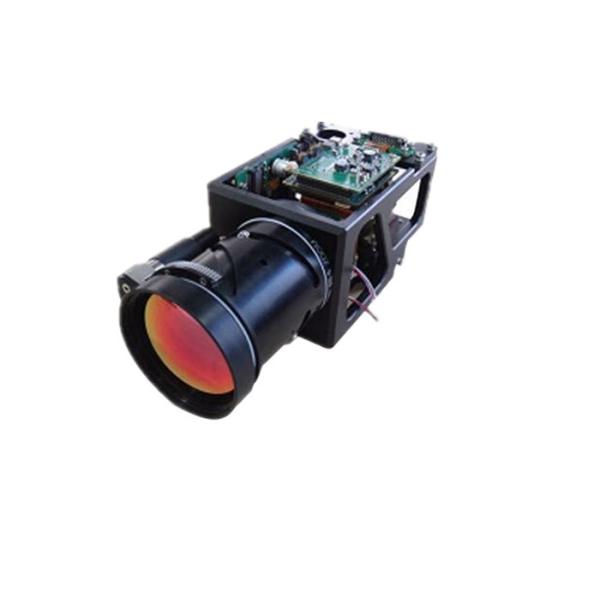

280mm Long Focal Length Continuous Zoom Miniature Airborne MWIR Cooled Thermal Security Camera

  • 1
  • 2

Brand Name : JOHO

Model Number : JH640-280

Certification : ISO9001:2000

Place of Origin : China

MOQ : 1 Set

Price : negotiable

Payment Terms : T/T, L/C

Supply Ability : 100Sets/Year

Delivery Time : negotiable

Packaging Details : safety box with vibration proof, water proof

Detector Type : Cooled MCT FPA

Pixel : 640x512

Focus Length : 15mm ~ 280mm continuous zooming

Recognize Range : 8km ( 2.3m x 2.3m vehicle ) 4.5km ( 1.7m person )

NETD : ≤23mk @ 25℃

Cooling Type : Stirling Cycle Cooling

Pitch : 15μm

Shutter Calibration : Manual / Automatic

Dimension : ≤218mm x 98mm x 89mm

Power Supply : DC 24-36V

Contact Now

Cooled MCT FPA Miniature size and light weight Thermal Security Camera

280mm long focal length medium wave cooled thermal camera is mainly used for remote observation. This mini-size thermal camera adopting high sensitivity medium wave cooled module and 640x512 module resolution is able to guarantee the clearer image; 15mm~280mm continuous zooming optical lens can recognize different target, such as person, vehicle or vessel effectively in a long distance.

Application

  • Air-borne Air-to-ground Observation and Monitoring

  • EO/IR System Integration

  • Search and Rescue

  • Forest Fire Warning

  • Airport, bus station and port security monitoring

Features

  • Miniature size and light weight can satisfy the UAV payload requirement

  • 15mm-280mm continuous zoom optic system can meet long-range, multi-task search and observation

  • Standard interface , easy to integrate

  • Intelligent image enhancement optimizes the image quality

  • Waterproof, compact and rugged design

Technical Specification

DETECTOR
Detector Type Cooled MCT FPA
Pixel 640x512
Spectral Band 3.7μm ~ 4.8μm
Pitch 15μm
NETD ≤23mk @ 25℃
Cooling Type Stirling Cycle Cooling
OPTICS
Focal Length 15mm ~ 280mm continuous zooming, F# :5.5
FOV (H)x(V) 1.97°x 1.58°~ 36.5°x 29.2°
FUNCTION & INTERFACE
Frame Frequency 30Hz (50Hz customized)
Analog Video PAL
Communication Control Interface RS232 / RS422( alternative)
Shutter Calibration Manual / Automatic
Background Calibration Yes
Polarity BH / WH
Electronic Zoom x 2 / x 4
Cross Cursor Display On / off
Cross Cursor Position Adjustable
Image Gain Adjustable
Image Brightness Adjustable
Image Enhancement Adjustable
Image Reversal Adjustable
Power Supply DC 24-36V
Consumption ≤10W @ 25℃
ENVIRONMENTAL
Operating Temperature -32℃ ~ 60℃
Storage Temperature -40℃ ~ 70℃
Vibration &Shock Proof GJB150.16-86 /MIL-STD-810F-514.5
High & Low Temperature Test GJB150.3-86 / MIL-STD-810F-514.5
PHYSICAL
Weight ≤1.6kg
Dimension ≤218mm x 98mm x 89mm
Color Oxidation Black
DETECTION RANGE
Detection Range 8km ( 2.3m x 2.3m vehicle ) 4.5km ( 1.7m person )

280mm Long Focal Length Continuous Zoom Miniature Airborne MWIR Cooled Thermal Security Camera280mm Long Focal Length Continuous Zoom Miniature Airborne MWIR Cooled Thermal Security Camera280mm Long Focal Length Continuous Zoom Miniature Airborne MWIR Cooled Thermal Security Camera

280mm Long Focal Length Continuous Zoom Miniature Airborne MWIR Cooled Thermal Security Camera
